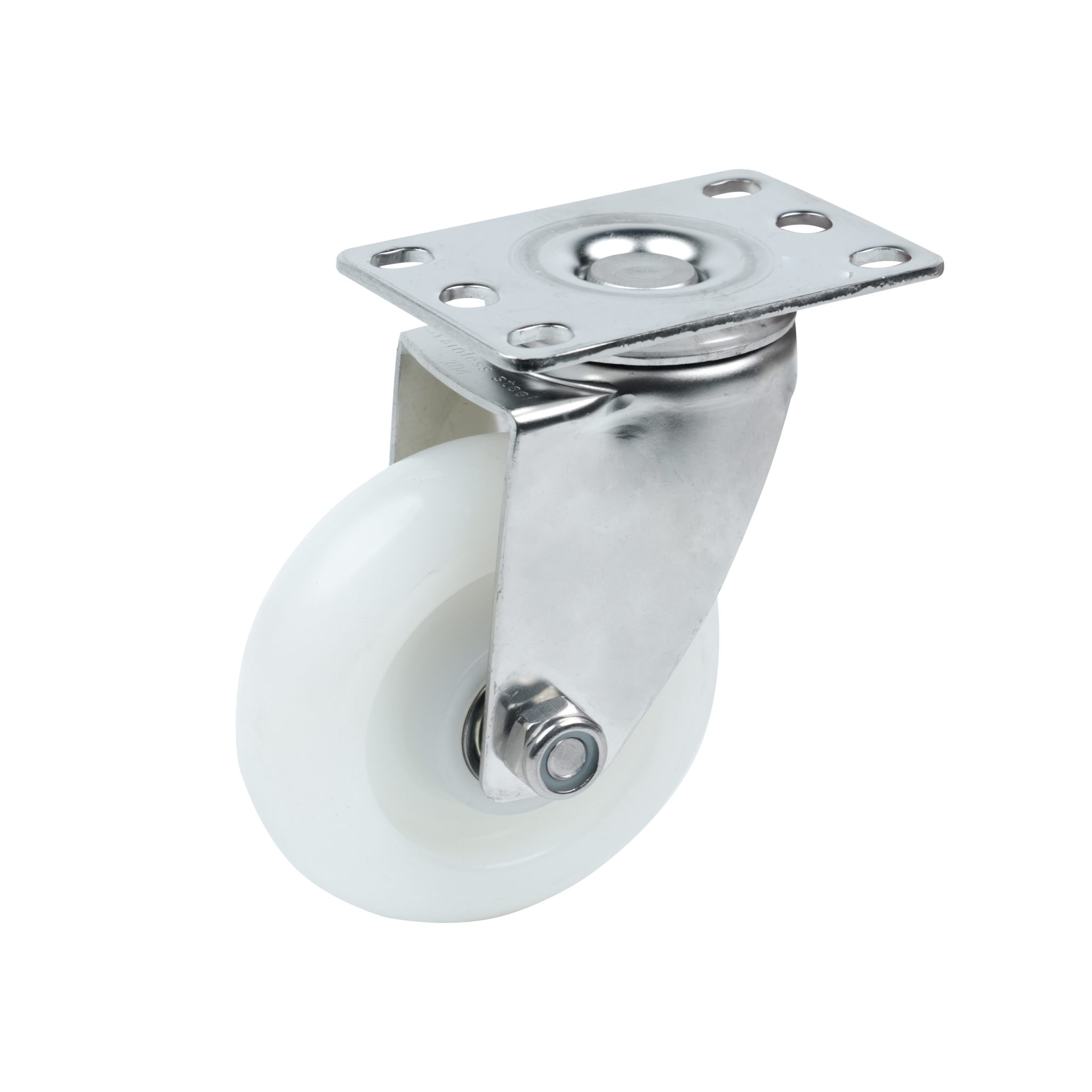

4″Stainless Steel Nylon Plate Swivel Caster

TC-NYPSA100-01

  • Plate thickness is 3mm, Fork thickness is 2.5mm, using 304 stainless steel bracket /
    can be customized 316 and other models of stainless steel material.
  • Brackets are specially stamped for added strength.
  • 304 stainless steel 6001 deep groove Ball Bearing.
  • Plate and fork are polished and free of any burrs.
  • Proprietary marking: stainless steel 304.
  • Double steel-ball track, more stable and strong.
  • Dual Precision Ball Bearings.
  • Fitted with customized nylon jam nuts for more stable use.

    Get A Quote

    • At the heart of this caster’s reliability is its robust construction. Crafted from high-grade 304 stainless steel, known for its excellent corrosion resistance and durability, this caster is built to withstand the most demanding industrial environments. The use of 304 stainless steel ensures longevity, making it a cost-effective investment that will serve your operations for years to come.
    • One of the standout features of this caster is its incorporation of both a 6001 deep groove ball bearing and dual precision ball bearings. This design choice results in exceptionally smooth swiveling and rotation, reducing friction and allowing for easy maneuverability. Whether you’re moving heavy machinery on a factory floor or navigating tight spaces, the precision ball bearings ensure minimal effort and noiseless operation.
    • The caster’s white nylon wheel adds another layer of functionality. Nylon is prized for its non-marking and non-marring properties, making it an ideal choice for surfaces that require protection. Whether your floors are epoxy-coated, polished concrete, or delicate hardwood, this caster won’t leave unsightly marks or damage behind. It’s a testament to the caster’s versatility and consideration for the work environment.
    APPLICATION: Resistant to acid, alkali, corrosion, abrasion and steam, can be used in food factories and freezers.
    Wheel Diameter:4″(φ101mm) Wheel Color:White
    Wheel Tread Width:1.25″(32mm) Temperature Range:-15℃ to 80℃(+5~+176℉)
    Overall Height:5 1/5″(132mm) Finish:Stainless Steel
    Wheel Material:Nylon Plate Mount:3.7″×2.6″(94×67mm)
    Wheel Type:Nylon Plate Hole Centers:2.9″ X 1.8″(74×45mm)
    Swivel Radius:80.5mm Assembly Hole Diameter:8.5mm
    Bearing Type:Bushing/Dual Precision Ball Bearings Weight(kg):0.7
    Capacity:120 kg(270 lbs) Caster Type:Swivel
    Wheel Face:Round Tread Wheel Category:Nylon
